ProductStarter
Letrika P/NIS9556
Voltage24 V
Power5.0 kW
OEM P/N11.139.266
MAHLE P/NMS 1135
DescriptionAZE4721
No. of pinion teeth10
Module3 mm
Distance over two teeth14.93 mm
Outside diameter of pinion39 mm
NotesGrounded
Noseless version of starter
Off set drive end bracket
Soft start relay
With reduction gear

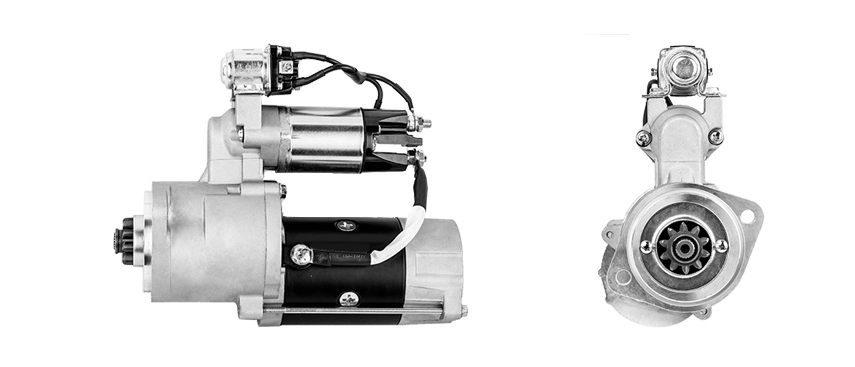

Click to enlarge
